Advanced manufacturing for critical industrial applications.
Integrated machining, sheet-metal fabrication, presshop, welding and heavy material-handling capabilities under one roof.
CNC Deep Hole Drilling
Precision deep-hole drilling for tube sheets, support plates and heat exchanger components.
- X Axis Travel : 3540 mm
- Y Axis Travel : 2925 mm
- Z Axis Travel : 1000 mm
- Job Size Handled upto 5000 mm

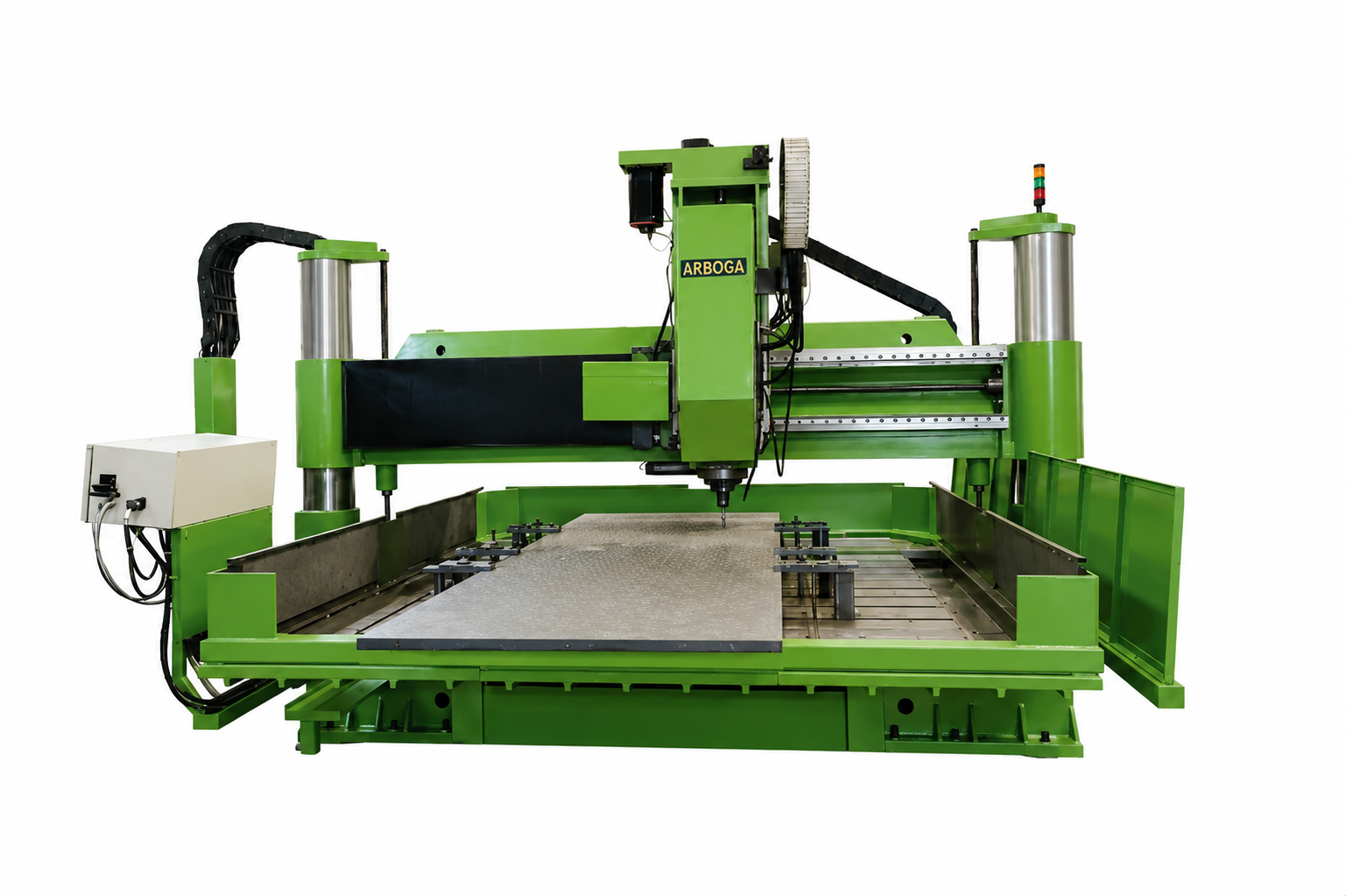

CNC Plano Milling
Heavy-duty CNC milling for oversized fabricated and machined components.
- X Axis Travel : 3300 mm
- Y Axis Travel : 3000 mm
- Z Axis Travel : 400 mm / z1: 1000 mm
- Job Size Handled upto 3500 mm

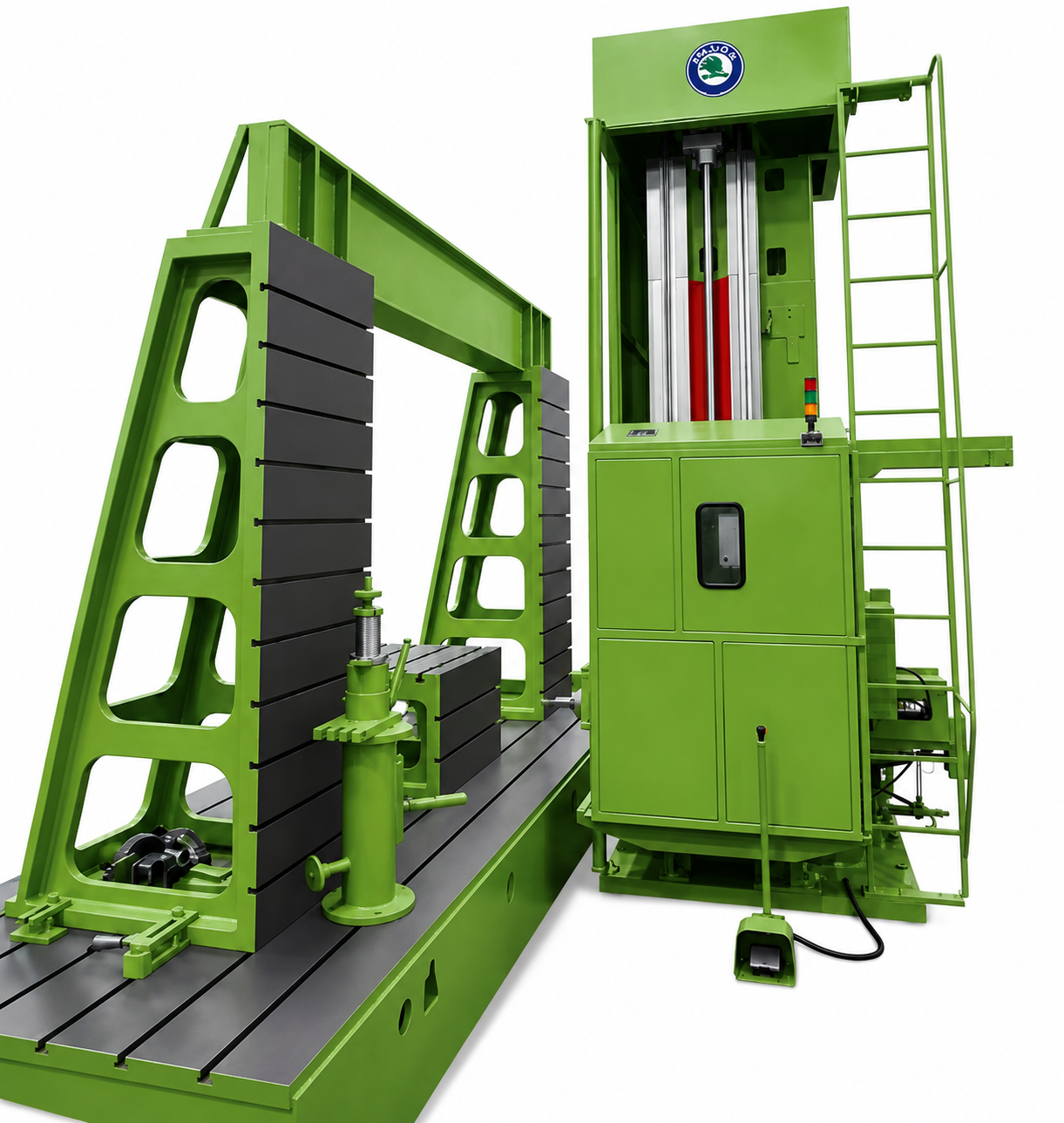

CNC Floor Boring
Precision floor boring and machining for large fabricated assemblies.
- X Axis Travel : 6300 mm
- Y Axis Travel : 3200 mm
- Z Axis Travel : 900 mm
- Controller : Fanuk

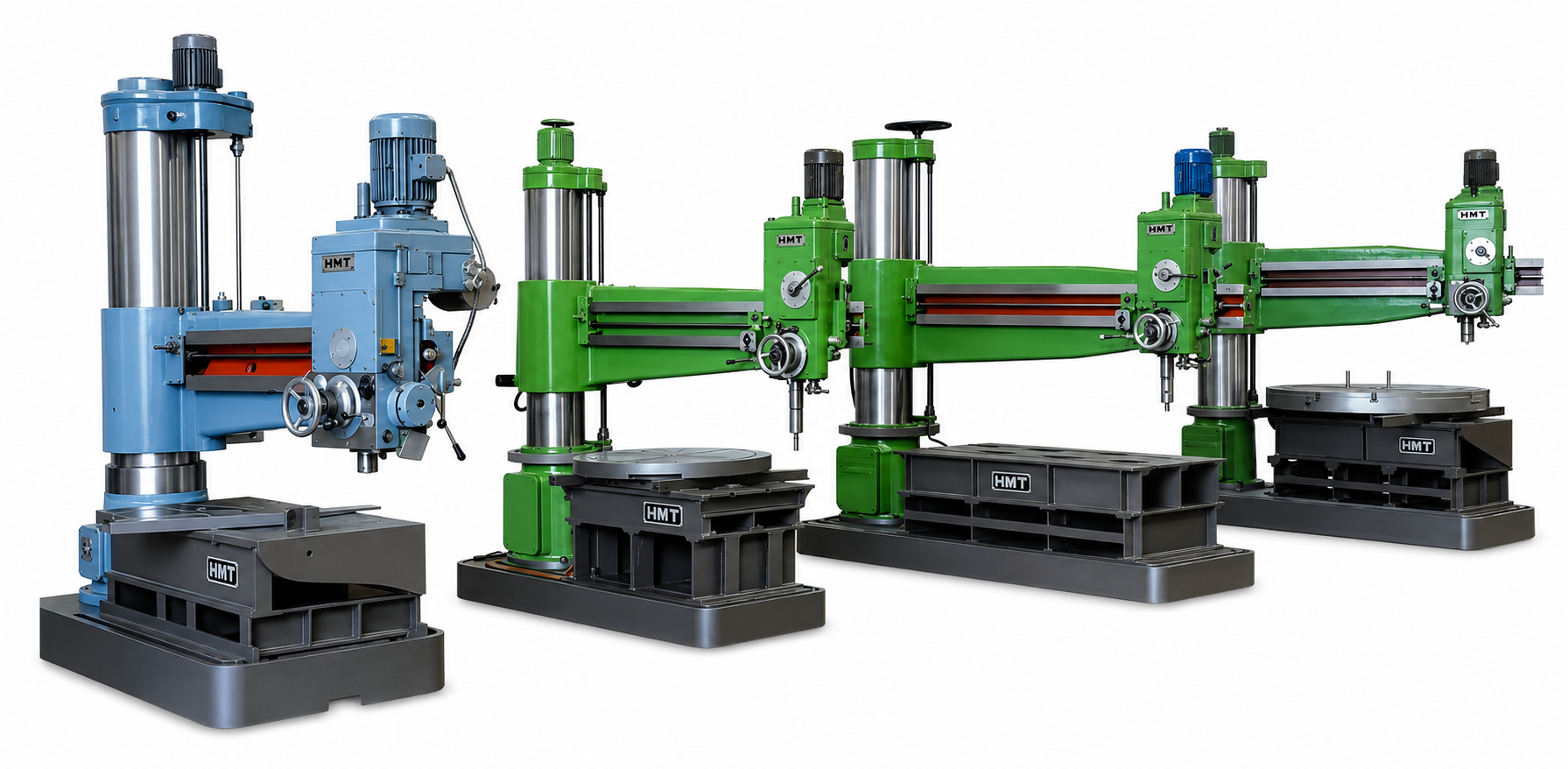

Radial Drilling
Flexible drilling for heavy fabricated components and large workpieces.
- HMT radial drilling machines
- 6 machines
- Heavy fabrication support

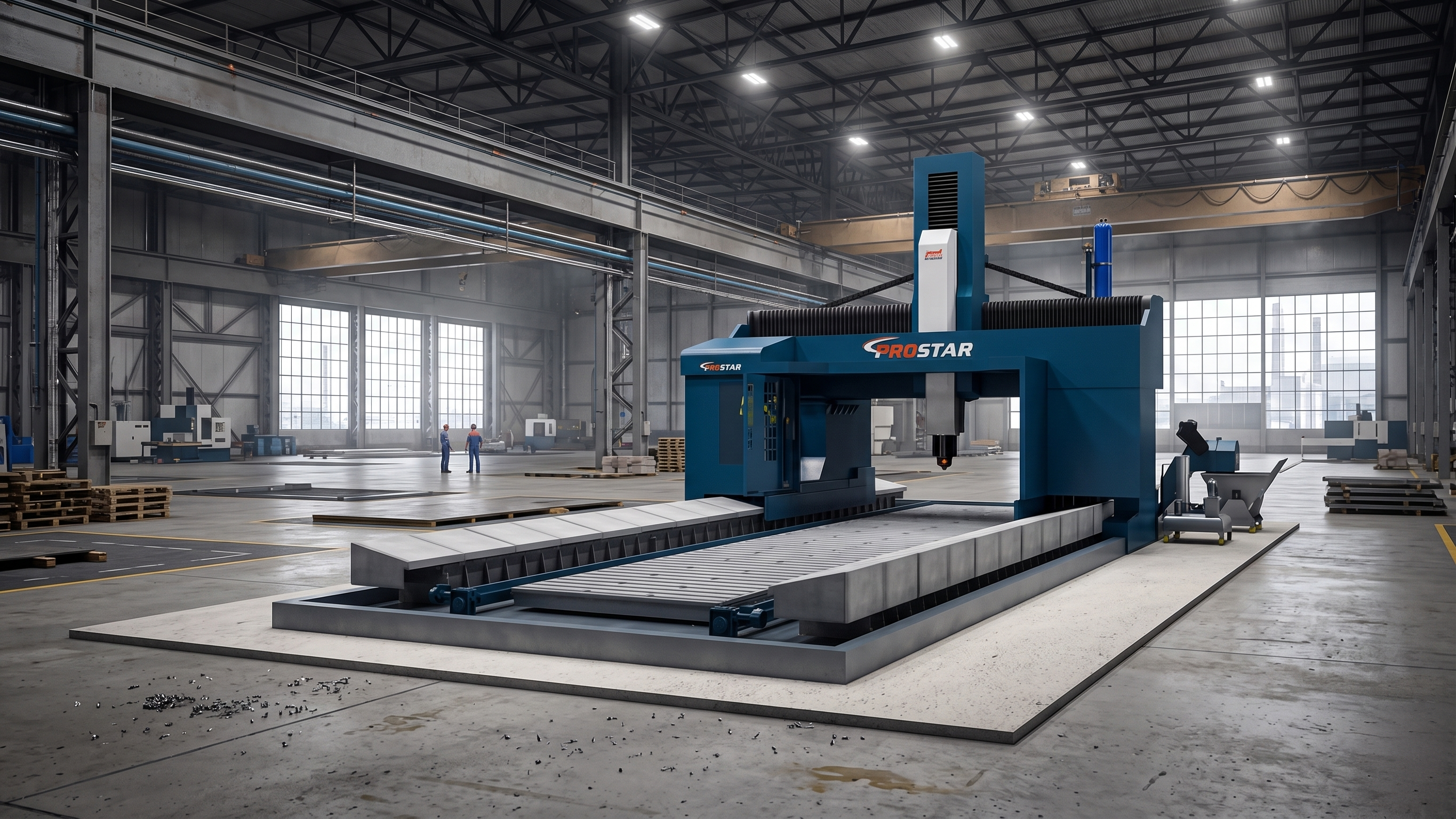

Moving Double Column Machining Center
High-capacity gantry machining for oversized industrial components.
- X-Travel : 6000 mm
- Distance Between Columns : 4800 mm
- Z-Travel : 1800 mm

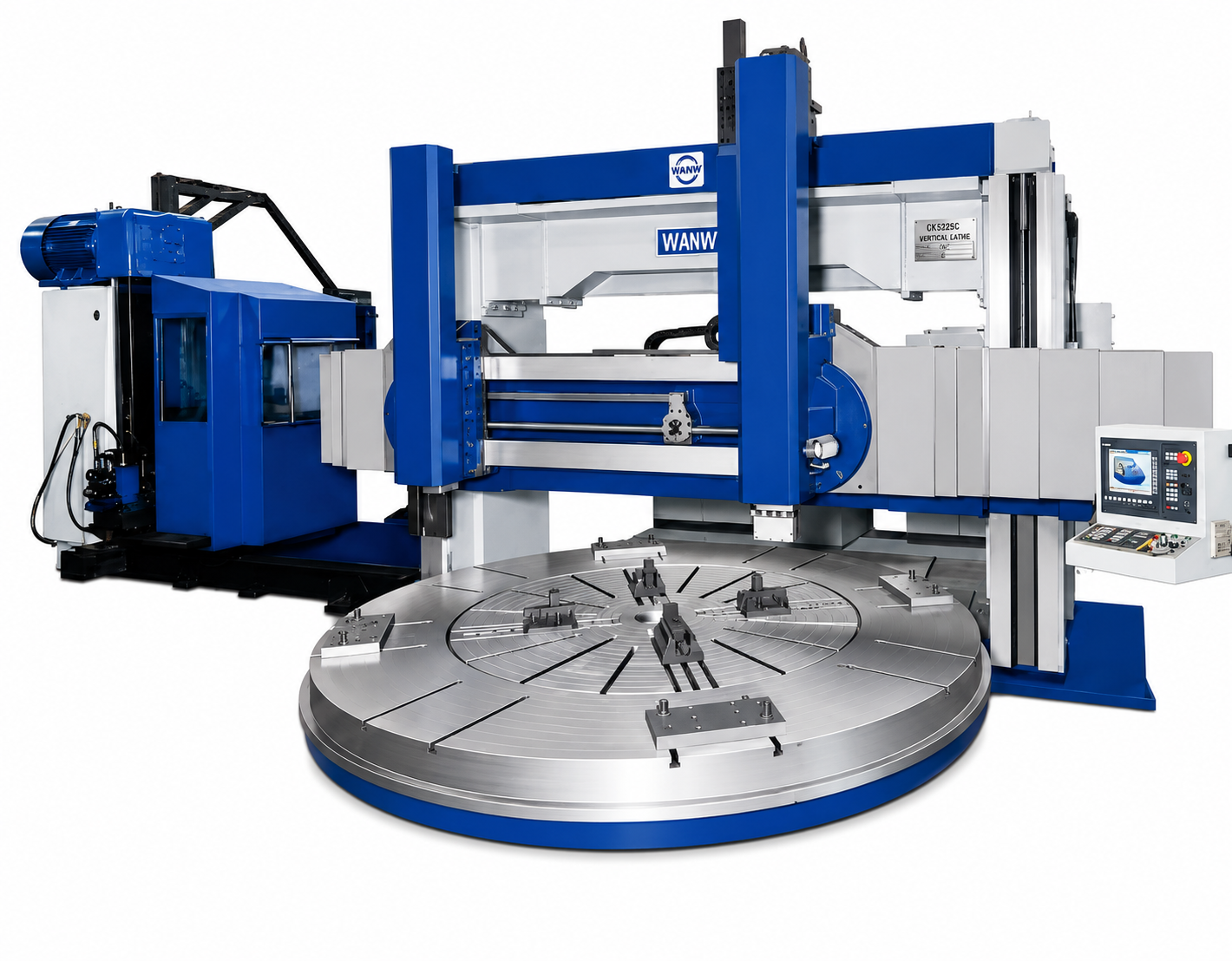

Vertical Turning Lathes (VTL)
Large-diameter turning for tube sheets, flanges and heavy components.
- Chuck Size : 4000 mm
- Height Of Job : 1500mm
- Maximum Swing : 4500 mm
- Job Capacity : Up to 20 tonnes
Fibre Laser Cutting
6 kW CNC fibre laser cutting for high-precision sheet-metal profiles.
- 6 kW Fibre Laser Cutting Machine
- Bed Size : 6500 × 2500 mm Double Bed
- Maximum Cutting Thickness : Up to 25 mm MS · 20 mm SS
- 6mm For Brass & Copper,12mm For Aluminium & Titanium

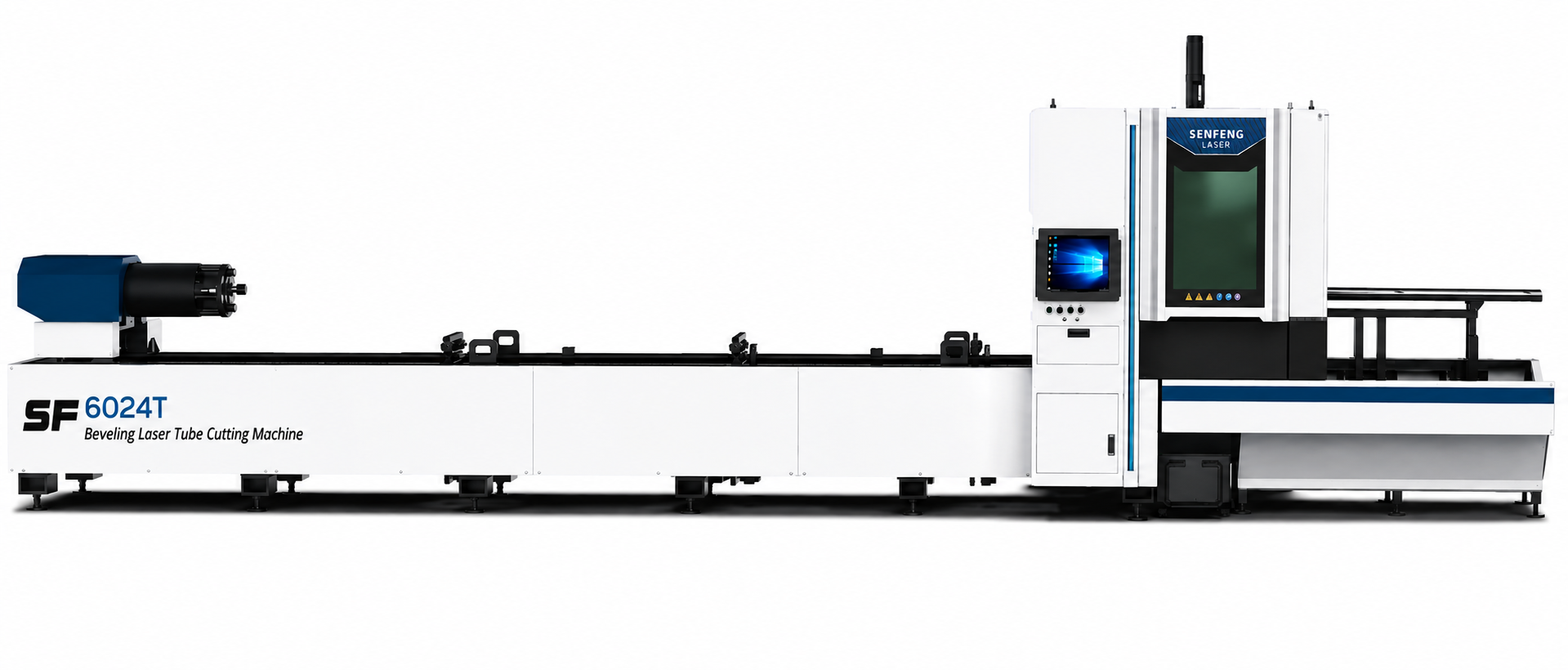

Fibre Laser Pipe Cutting
CNC laser cutting for round, square, rectangular and channel pipe profiles.
- 3 kW Laser Pipe Cutting Machine
- Bed Size : 6000 mm
- Maximum Cutting Thickness :10 mm MS , 8 mm SS
- 6 mm For Aluminum
- Cutting profiles :Pipes Round, Square,Rectangular,C Channel
- Holding Capacity : Up to 200 mm

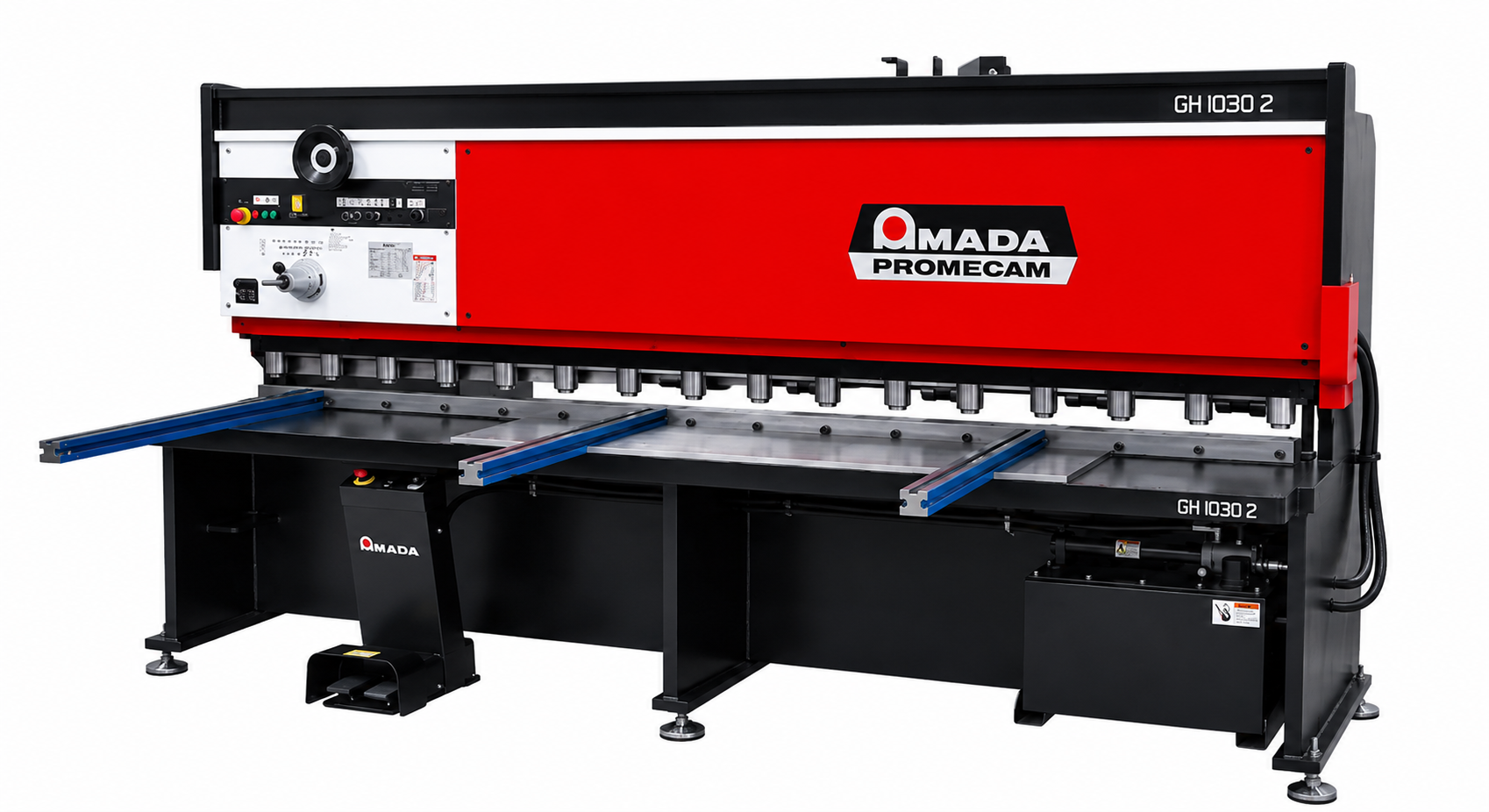

CNC Shearing
Accurate CNC shearing for heavy sheet-metal plate processing.
- Size : 3 meter
- Max Shearing Thickness : 10 mm MS

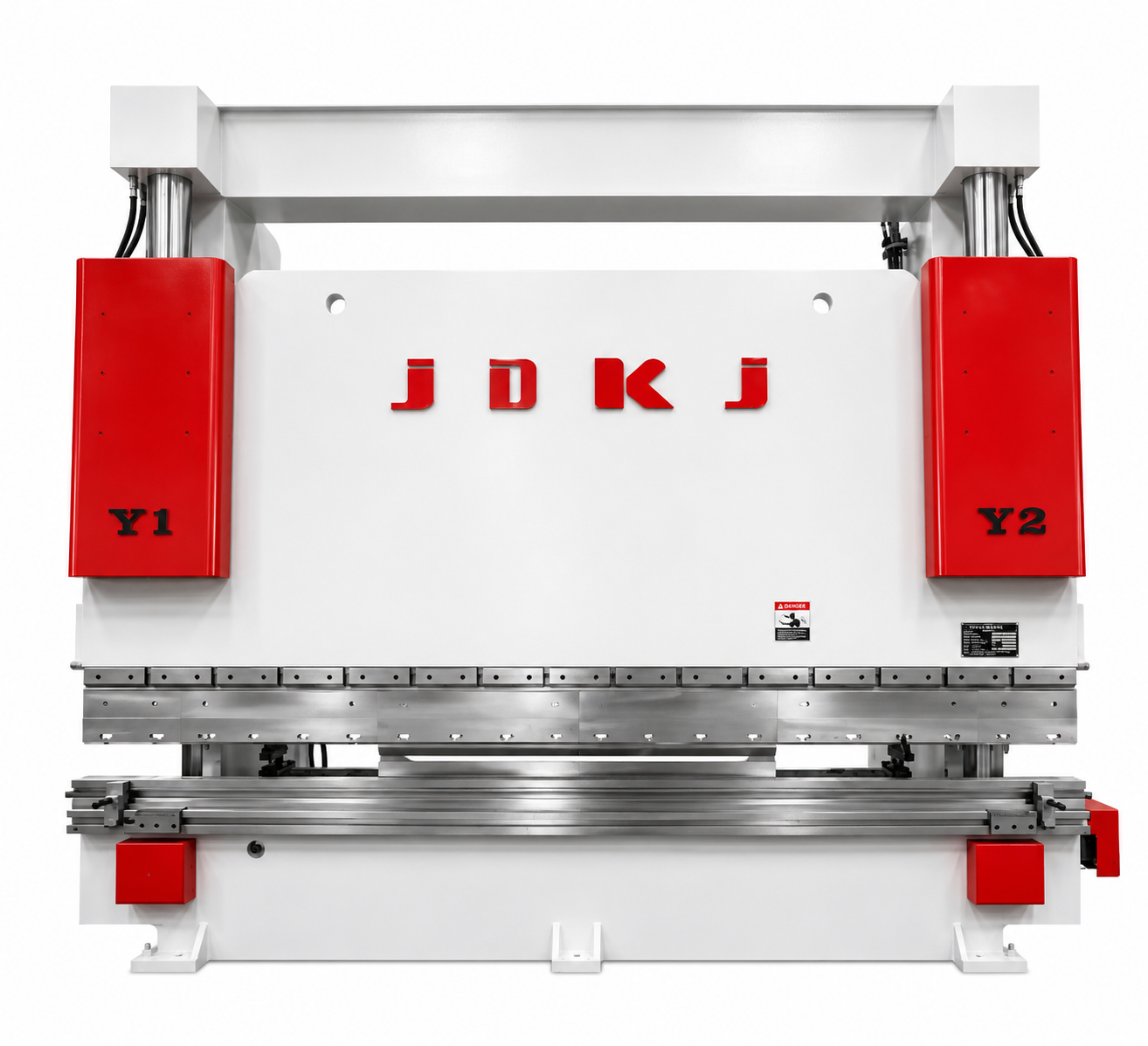

CNC Bending / Press Brake
Heavy press-brake bending for formed sheet-metal structures.
- Size : 6100 mm
- Maximum Bending Thickness : 16 mm MS
- Tonnage : 700 tonnes

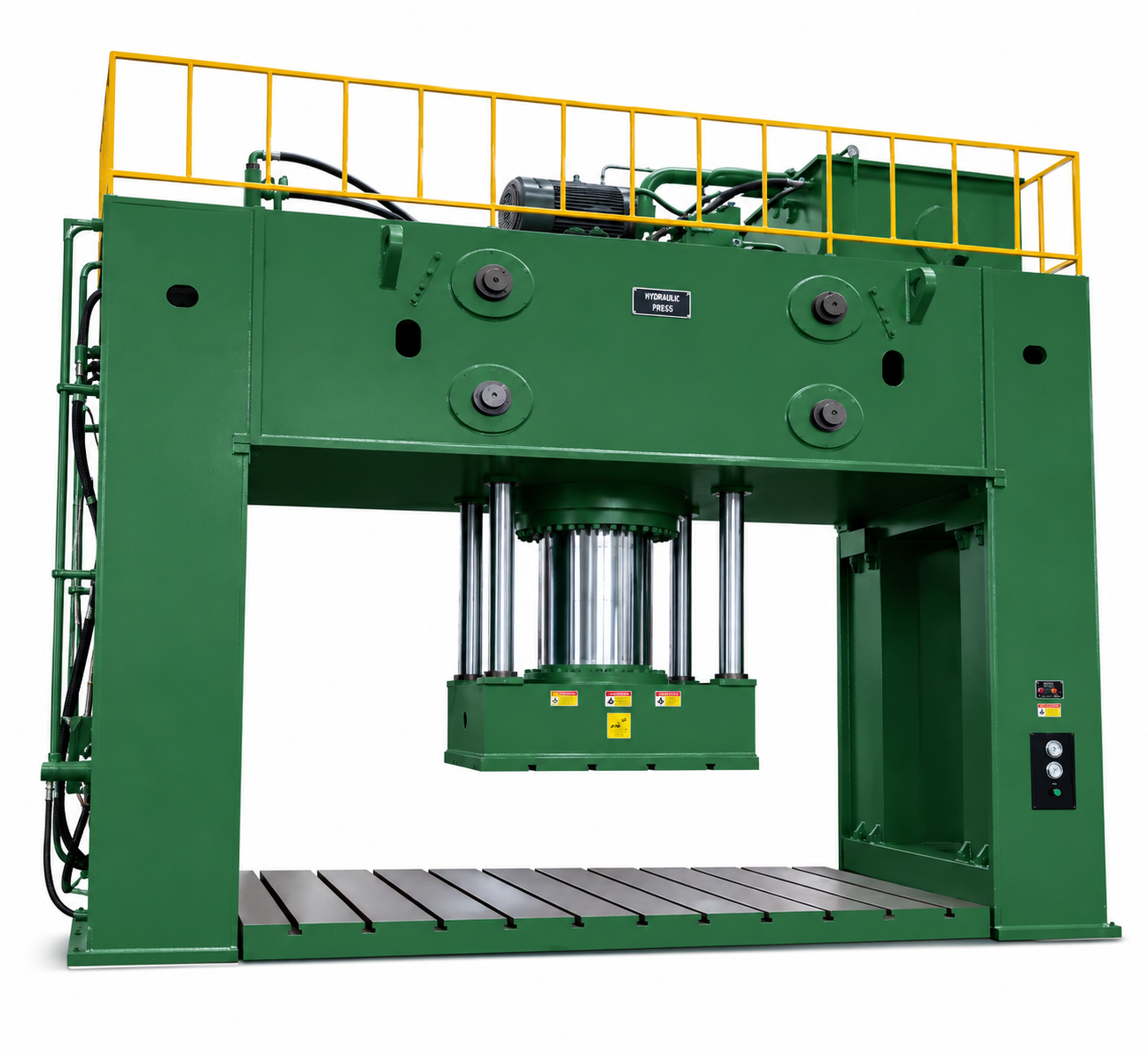

Dishend pressing machine
Laser-cut, sheared, bent and welded sheet-metal structures manufactured to drawing.
- Capacity : 2000 tonnes
- Span : 5000 mm
- Height : 3000 mm
Plate Rolling
Cold and hot rolling of heavy plate into shells for pressure vessels and boilers.
- Width : 3000 mm
- Maximum thickness: Cold-100 mm | Hot-200 mm
- Job Capacity: With Pre-Punching 80 mm Thick

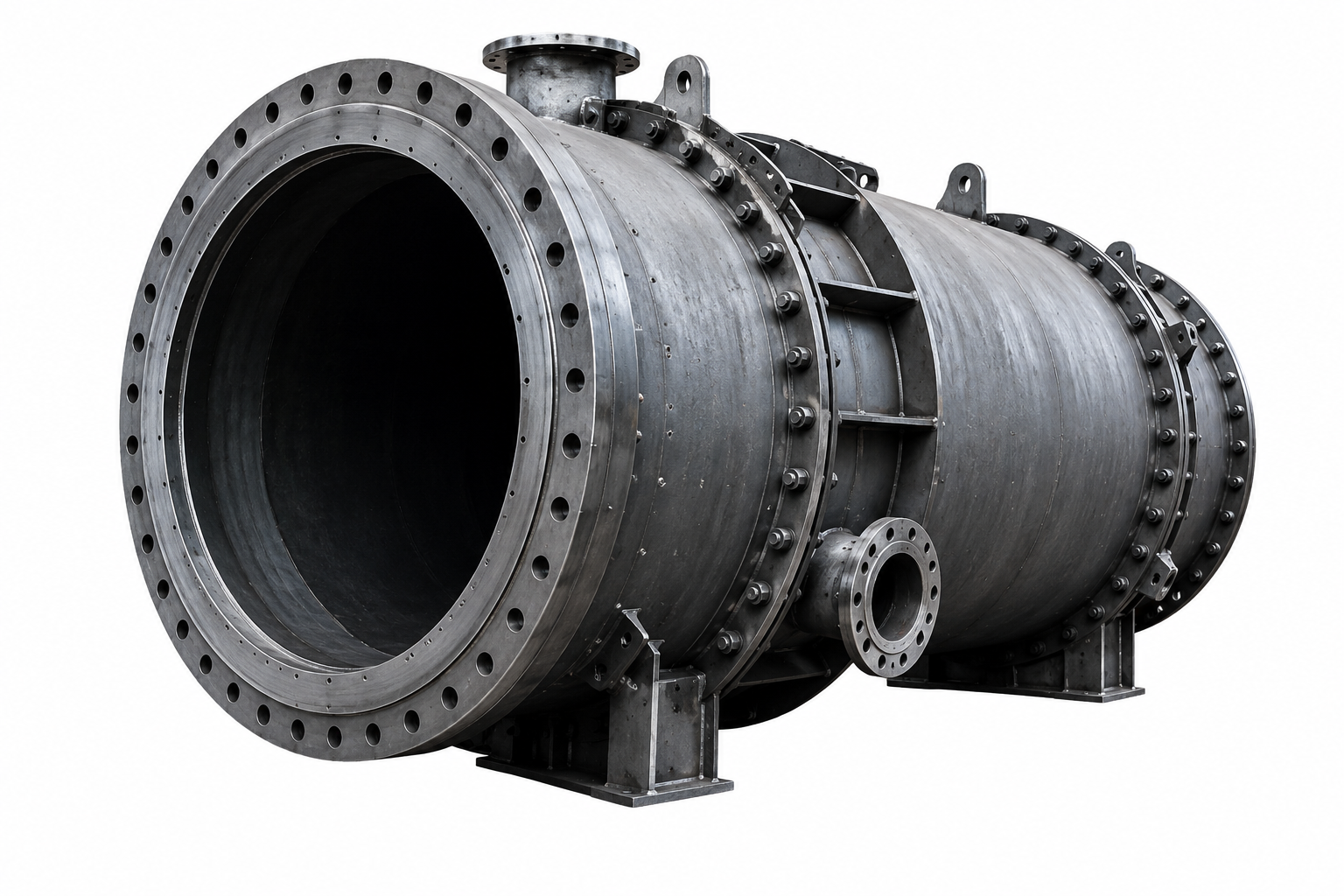

Custom Heavy Engineering Fabrication
Custom fabrication and machining of tube sheets, shells, dished ends, cones and heavy industrial assemblies.
- Built to client drawings
- Fabrication and machining support
- Heavy industrial assemblies
Dished End & Crown Petal Forming
Heavy press forming for large dished ends and crown petals.
- Span: Up to 5 m
- Thickness: 110 mm
- Capacity: 2000 tonnes
Pressure Vessel Fabrication
End-to-end pressure vessel and boiler fabrication with inspection support for applicable projects.
- Tailor-made equipment
- Third-party inspection support
- Heat transfer and O&G
Tube Sheets & Support Plates
Precision-drilled tube sheets, baffles and support plates for heat exchanger applications.
- Up to Ø 4000 mm
- Precision drilled hole patterns
- Heat exchanger component manufacturing

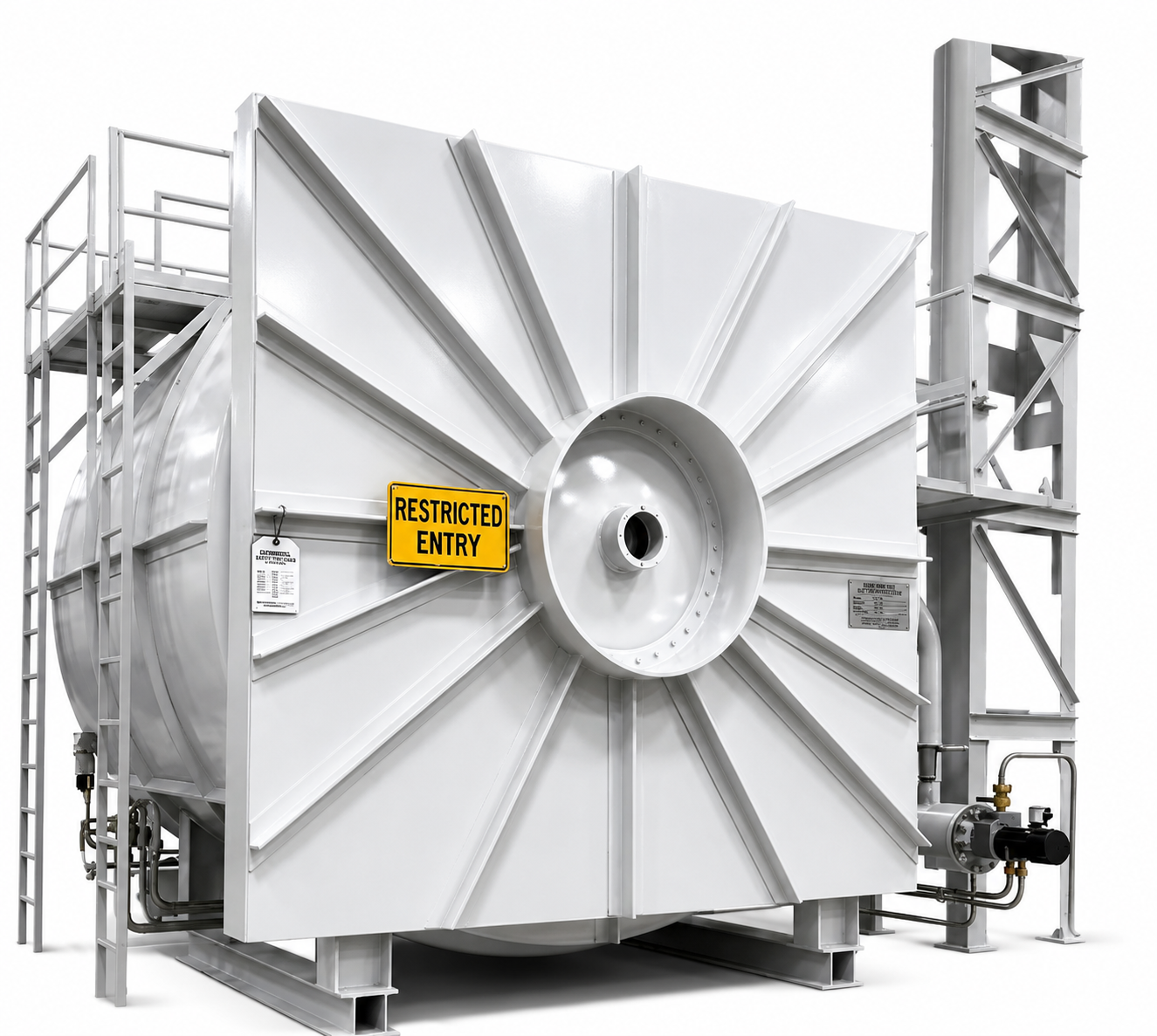

Gas Fired Furnace
Thermal processing equipment supporting heavy fabrication operations.
- Capacity: 4.5 x 5 x 2 mtr Height

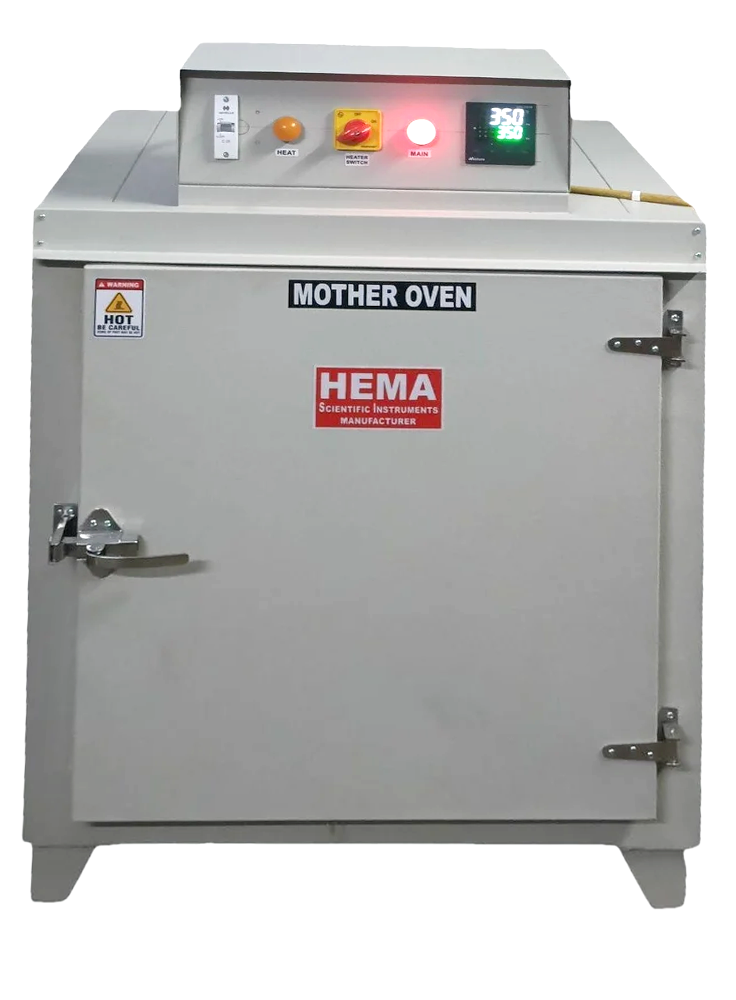

Mother Oven
Welding electrode baking and storage for consumable control.
- Electrode baking
- Dry storage
- Quality-controlled welding consumables

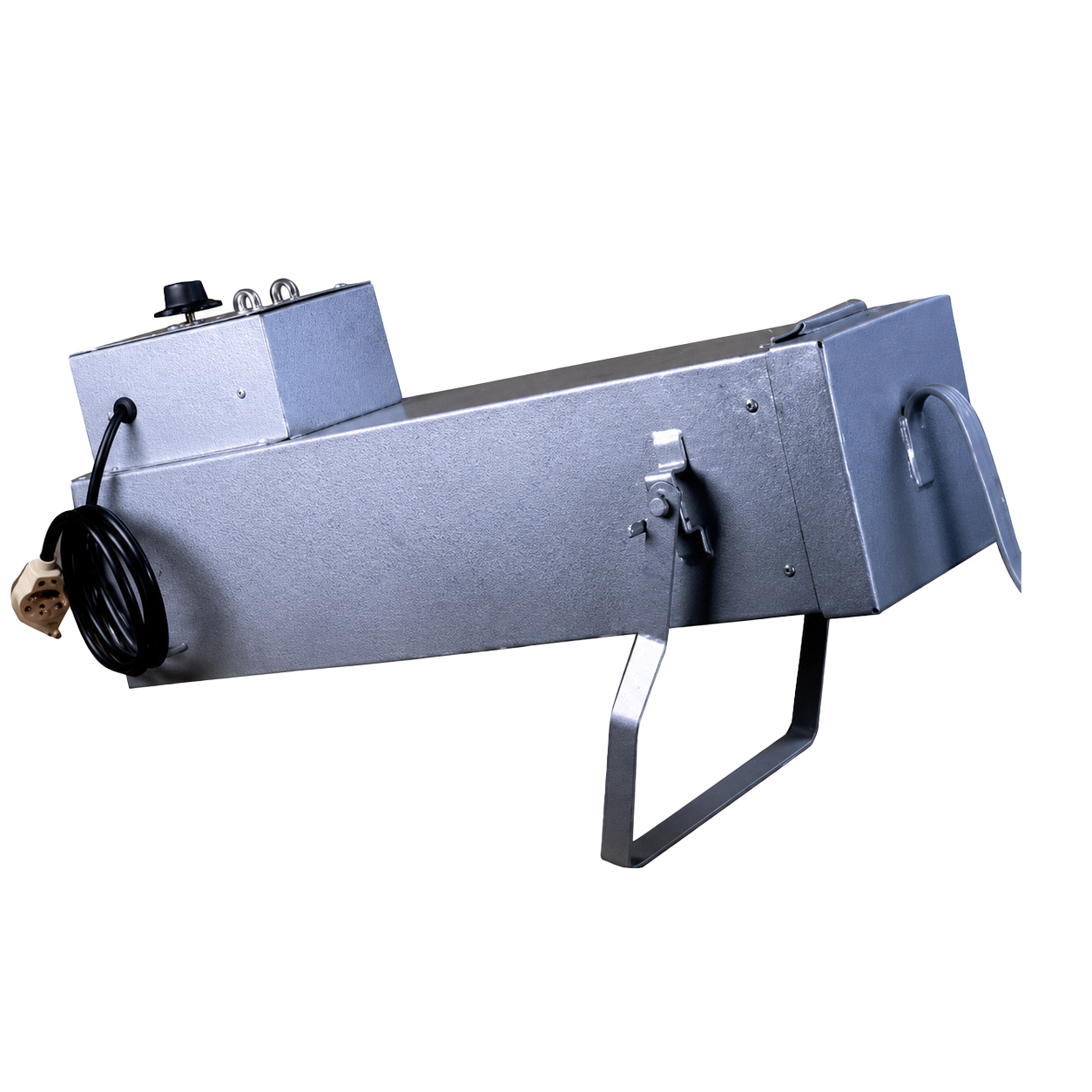

Portable Industrial Oven
Portable industrial oven for fabrication and welding support.
- Portable industrial heating
- Fabrication support
- Welding support

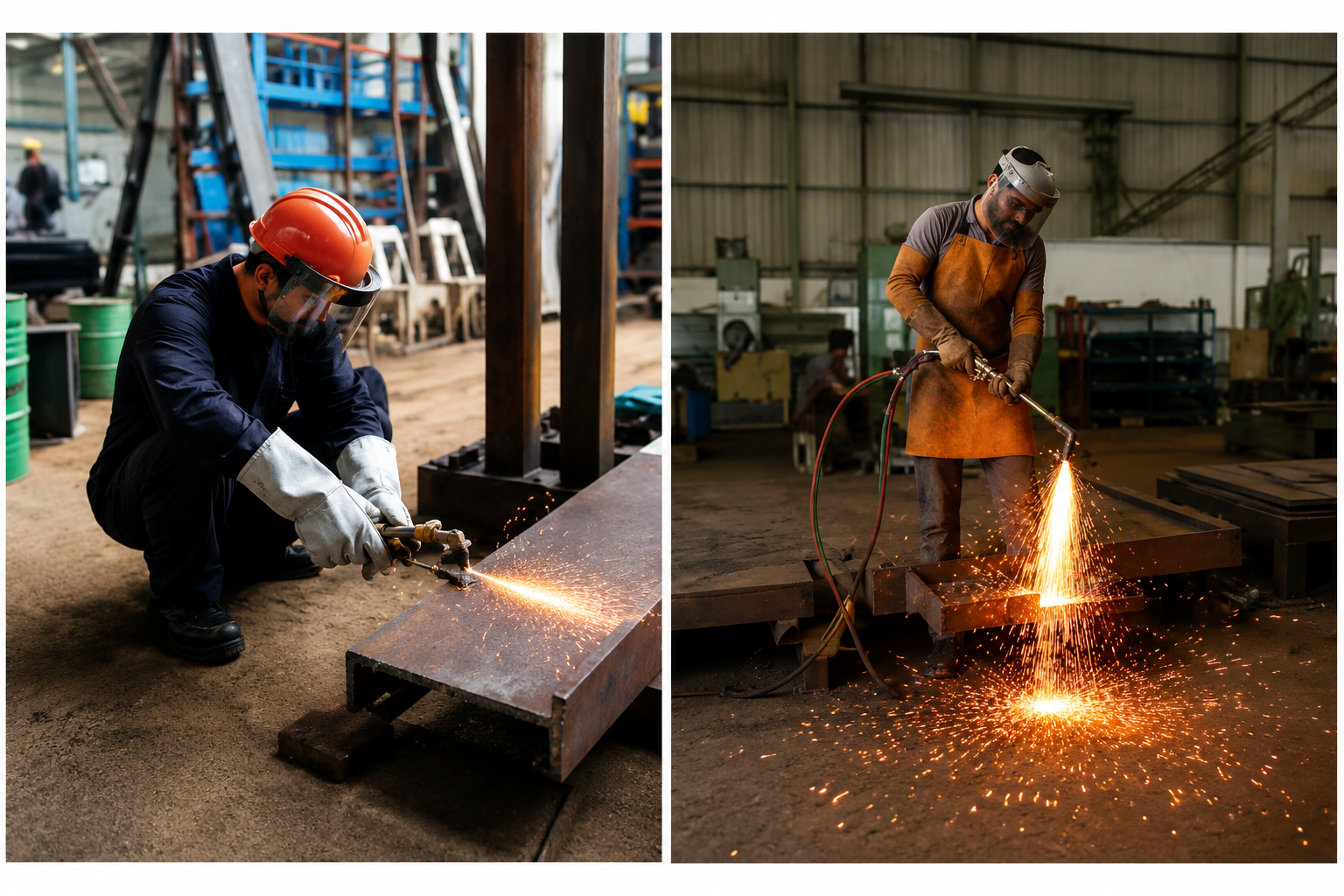

Industrial Welding & Assembly
Multi-process welding capability for heavy fabrication work.
- 6 Nos.
- 2 Nos.
- 2 Nos.

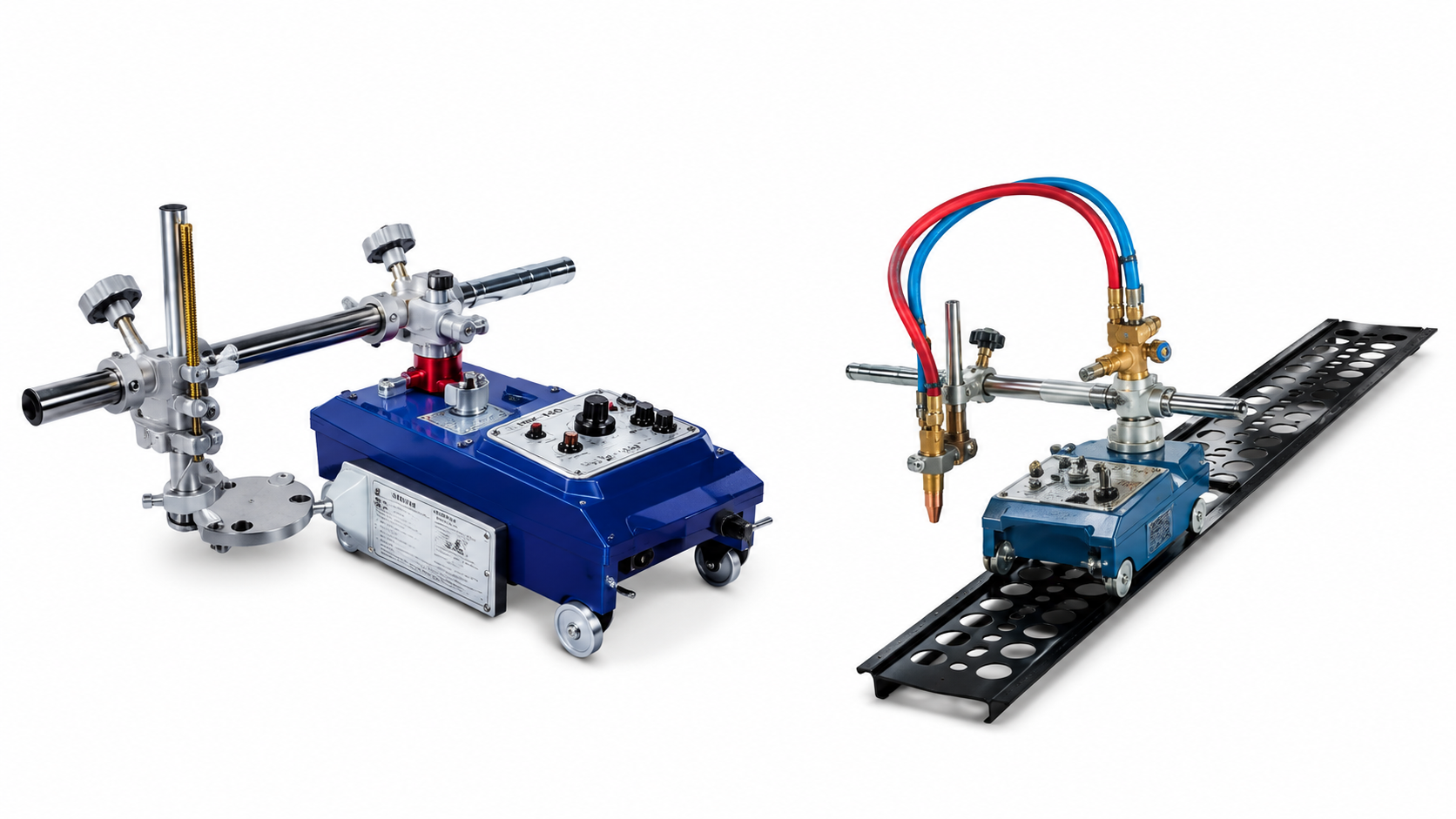

Plasma & Oxyfuel Cutting
Thermal cutting equipment for industrial fabrication.
- Cutting Plasma - 2 Nos | Oxyfuel - 2 Nos.
- Welding SMAW - 6 Nos | GTAW - 2 Nos | GMAW - 2 Nos | SAW - 2 Nos.

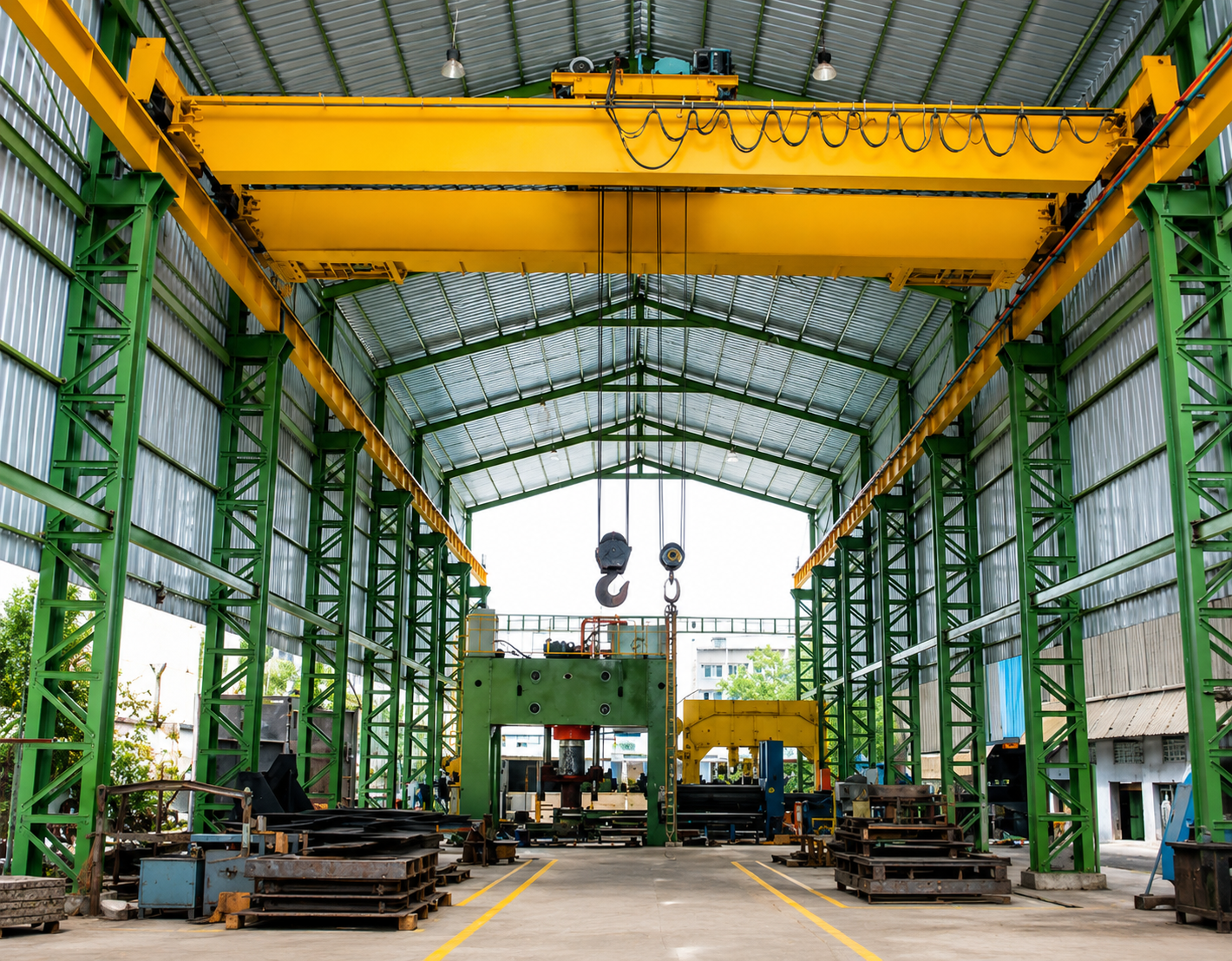

EOT Cranes & Material Handling
In-house lifting infrastructure for heavy fabricated equipment.
- 45 Tonnes - 2 Nos | 35 Tonnes - 1 No.
- 20 Tonnes - 2 Nos. | 10 Tonnes - 2 Nos.
